2 - Refabrication of Joints of front Suspensions

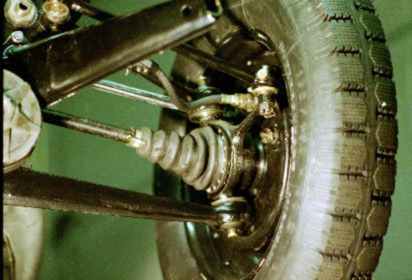

The upper joints were in good condition and have been mounted again after the checks and cleaning.

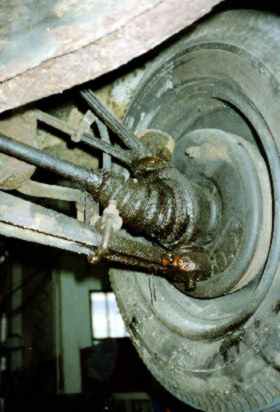

The lower joints were broken so that they have been rebabricated.




A joint SKF has been utilized, chosen from the SKF catalogue.

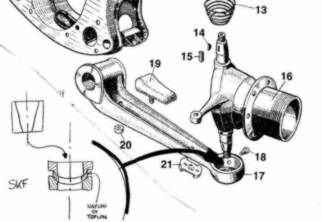

The employed type is manufactured by Nylon (or teflon) between the two parts (see drawing).

The capacity is 400/450 Kg each, that is enough for the weight of the front part of the 7A on each wheel.

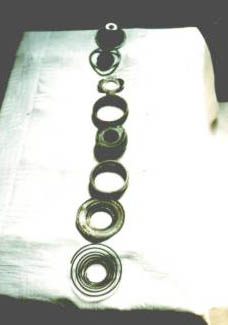

A ring has been constructed to be fitted inside the joint. The internal surface has been worked in order to have the required conicity.
